YH50
- Categories : YH series
• The injection part adopts a linear guide rail structure, which is stable,efficient and energy-saving.• It can meet the requirements of high-precision product molding,improve the injection speed and response, significantly improve themolding quality and precision.• The latest "excellent" integrated computer is used to comprehensivelyimprove the positioning accuracy and improve the overall operationstability.
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-50 | ||||||
International Size Rating | ||||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 23 | 25 | 27 | / | |
Screw ratio | L/D | 20 | 20 | 20 | / | |
Theoretical injection capacity | cm³ | 50 | 59 | 69 | / | |
Injection weight | g | 45 | 53 | 62 | / | |
Injection rate | g/s | 78.7 | 93.0 | 108.5 | / | |
Injection pressure | Mpa | 243 | 206 | 177 | / | |
Screw rotation speed | r/min | 0-250 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 500 | Dryer | 12-25kg | ||

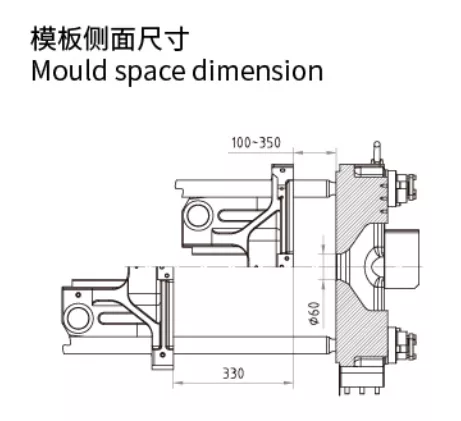

Mold opening stroke | mm | 330 | Feeder | 300g | ||

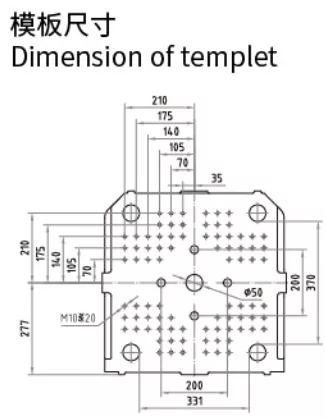

Space between tie bars | mm | 330×370 | Air switch specification | A | ||
Max.Mold Height | mm | 350 | Power cord specification | mm² | ||
Min.Mold Height | mm | 100 | Mold positioning ring specification (mm) | Ø50mm | ||
Ejector Stroke | mm | 70 | Nozzle aperture (mm) | Ø | ||
Ejector Force | KN | 23.9 | Nozzle spherical R angle | SR | ||
Others | Mold clamping screw specification | M12 | ||||
Oil pump motor power | KW | 7.9 | Template outline dimension (mm) | |||
Heater power | KW | 4.95 | Foundation bearing requirement | |||
Machine dimension | M | 3.18×0.93×1.64 | Oil cooler water flow requirement (L/min) | |||
Machine weight | T | 2.2 | Cooler inlet and outlet pipe interface | |||
Hopper capacity | L | 17 | Minimum mold size (length × width) (mm) | |||
Oil Tank Capacity | L | 110 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description
Application Cases

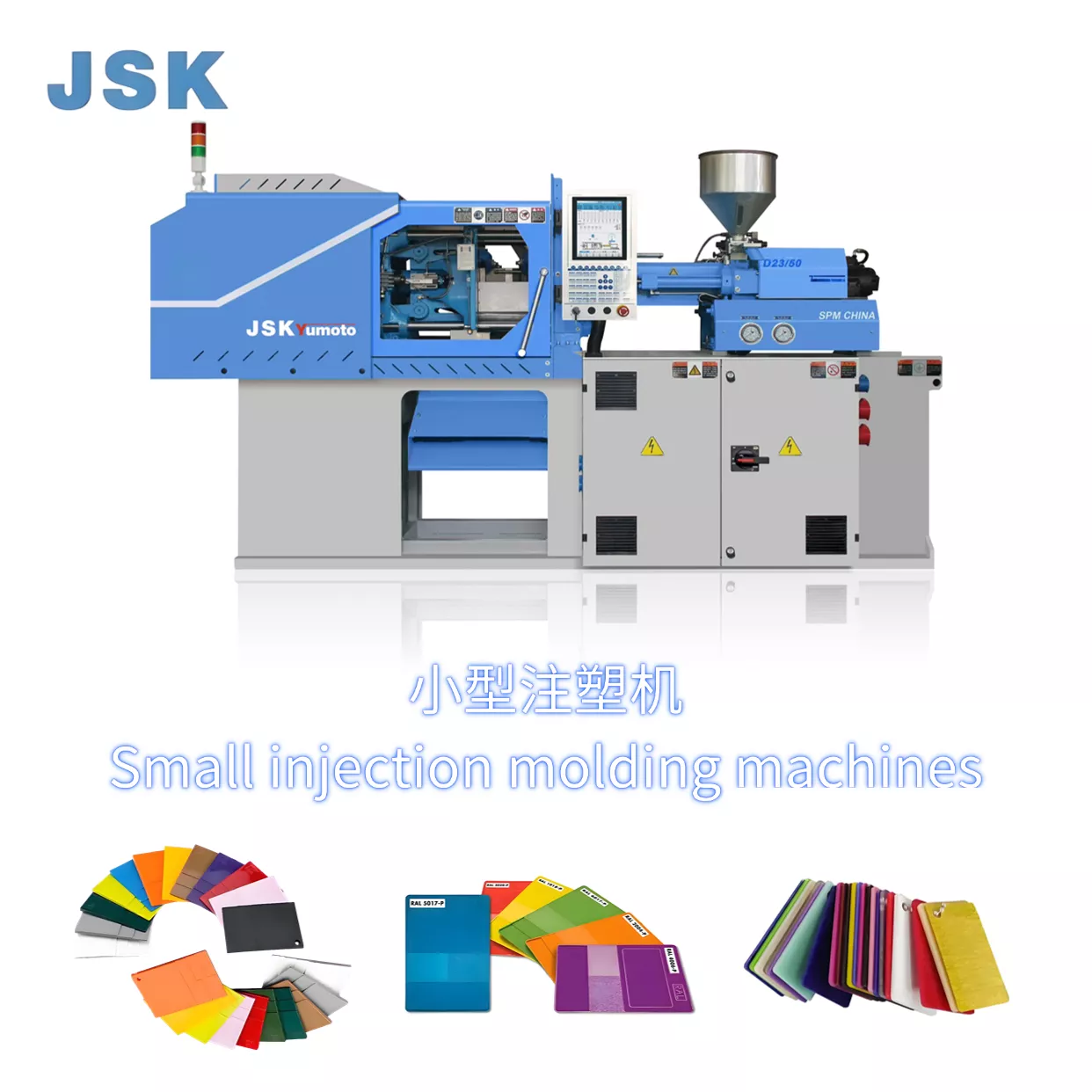

JSK Brand Color Swatch Machine
Specialized for Masterbatch and Pigment Manufacturers
The JSK brand color swatch machine is specifically designed for masterbatch and pigment manufacturers,boasting over 20 years of rich production experience.It continuously improves to meet the color matching needs of customers in the masterbatch industry and has earned the trust of customers both domestically and internationally.
Standard Swatch Reference Dimensions:
• Length:70 mm
• Width:50 mm
• Thickness:2 mm,1.5 mm,or 1 mm(two cavities per mold)
Suitable Materials:
PP,PE,PS,PET,ABS,PC,PA,PBT,TPU,etc.
For Large Chemical Companies,R&D Centers,and Universities
The JSK brand specimen machine is designed to meet the needs of large international chemical companies,R&D centers,and universities.It provides various types of specimens in accordance with international standards,including ISO and ASTM series for tensile testing,notched and unnotched impact testing,electrical properties,flame retardancy,and more.
Machine Advantages:
• Excellent plasticizing capability and uniform color mixing.
• Superior surface finish and gloss.
• Quick and convenient screw cleaning for color changes.
• Compact machine size with low investment and maintenance costs.
• All operations are computer-controlled,with mold data storage capabilities for easy operation.
