YH70 Small precision machine
- Categories : Special custom series
All-electric injection molding machine, High-speed thin-wall injection molding machine, Ningbo Yonghua Plastic Machine Co., Ltd.
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-70 | ||||||
International Size Rating | ||||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 27 | 28 | 30 | / | |
Screw ratio | L/D | 20 | 20 | 20 | / | |
Theoretical injection capacity | cm³ | 59 | 74 | 85 | / | |
Injection weight | g | 53 | 66 | 76 | / | |
Injection rate | g/s | 82.6 | 103.6 | 119.0 | / | |
Injection pressure | Mpa | 267 | 213 | 185 | / | |
Screw rotation speed | r/min | 0-230 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 700 | Dryer | 50kg | ||
Mold opening stroke | mm | 380 | Feeder | 700g | ||
Space between tie bars | mm | 370×410 | Air switch specification | A | ||
Max.Mold Height | mm | 400 | Power cord specification | mm² | ||
Min.Mold Height | mm | 150 | Mold positioning ring specification (mm) | Ø100 | ||
Ejector Stroke | mm | 95 | Nozzle aperture (mm) | Ø4.5 | ||
Ejector Force | KN | 37.3 | Nozzle spherical R angle | SR | ||
Others | Mold clamping screw specification | M16 | ||||
Oil pump motor power | KW | 11 | Template outline dimension (mm) | |||
Heater power | KW | 6.46 | Foundation bearing requirement | |||
Machine dimension | M | 3.53×1.0×1.72 | Oil cooler water flow requirement (L/min) | |||
Machine weight | T | 3.1 | Cooler inlet and outlet pipe interface | |||
Hopper capacity | L | 17 | Minimum mold size (length × width) (mm) | |||
Oil Tank Capacity | L | 165 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description

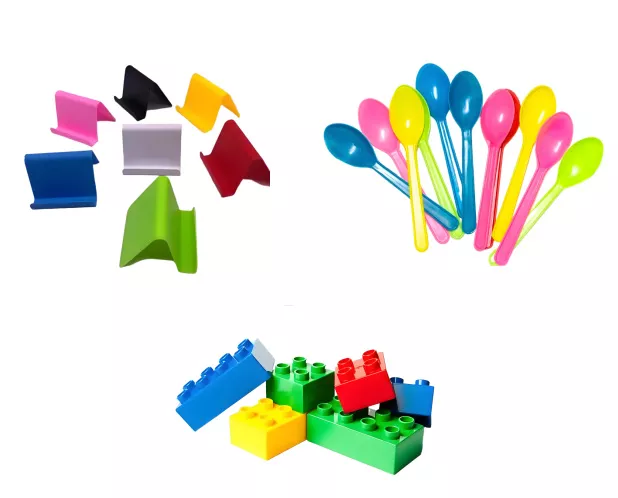

Application Cases
