Automotive Parts Dedicated Injection Molding Machine
- Categories : Special custom series
Introduction to Automotive Parts Dedicated Injection Molding MachineThe Automotive Parts Dedicated Injection Molding Machine is a high-performance injection molding equipment specifically designed for the production of high-quality automotive components.It meets the strict requirements of the
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-1180 | ||||||
International Size Rating | 8900 | |||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 100 | 110 | 120 | 130 | |
Screw ratio | L/D | 25 | 23 | 21 | 21 | |
Theoretical injection capacity | cm³ | 4163 | 5037 | 5994 | 7035 | |
Injection weight | g | 3788 | 4584 | 5455 | 6402 | |
Injection rate | g/s | 601 | 728 | 866 | 1016 | |
Injection pressure | Mpa | 212 | 175 | 147 | 125 | |
Screw rotation speed | r/min | 0-99 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 11800 | Dryer | 400kg | ||
Mold opening stroke | mm | 1230 | Feeder | 800g | ||
Space between tie bars | mm | 1230×1180 | Air switch specification | 400A | ||
Max.Mold Height | mm | 1200 | Power cord specification | 95mm² | ||
Min.Mold Height | mm | 500 | Mold positioning ring specification (mm) | Ø250 | ||
Ejector Stroke | mm | 320 | Nozzle aperture (mm) | Ø6 | ||
Ejector Force | KN | 215 | Nozzle spherical R angle | SR20 | ||
Others | Mold clamping screw specification | M24 | ||||
Oil pump motor power | KW | 50.2+50.2 | Template outline dimension (mm) | 1740×1820 | ||
Heater power | KW | 70 | Foundation bearing requirement | 7t/m² | ||
Machine dimension | M | 12.2×2.8×2.7 | Oil cooler water flow requirement (L/min) | 253 | ||
Machine weight | T | 55 | Cooler inlet and outlet pipe interface | 1-1/2″ | ||
Hopper capacity | L | 100 | Minimum mold size (length × width) (mm) | 880×825 | ||
Oil Tank Capacity | L | 1750 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description
Introduction to Automotive Parts Dedicated Injection Molding Machine
The Automotive Parts Dedicated Injection Molding Machine is a high-performance injection molding equipment specifically designed for the production of high-quality automotive components.It meets the strict requirements of the automotive industry for product precision,strength,and production efficiency.Here are the main features of this machine:
High-Speed Production
• Fast Molding Cycle:Equipped with advanced injection molding technology,it offers a short molding cycle and fast injection speed,significantly improving production efficiency to meet large-scale production needs.
• Synchronized Functionality:The machine features a synchronized function of mold opening and material storage,optimizing the production process and shortening the production cycle to further enhance production speed.
Energy-Saving and Electricity-Conserving
• Efficient Energy System:Adopting advanced energy-saving technologies,it significantly reduces energy consumption compared to traditional injection molding machines,saving a considerable amount of electricity and reducing production costs.
• Smart Energy Management:The intelligent energy management system automatically adjusts power according to production needs,further reducing energy consumption and saving operational costs for businesses.
High Precision
• High-Precision Control System:Equipped with a high-precision control system that can accurately control key parameters such as temperature,pressure,and speed during the injection molding process,ensuring the stability and consistency of automotive component quality.
• Precision Mold Compatibility:Designed specifically for automotive component production,it can accommodate high-precision molds,meeting the strict requirements for dimensional accuracy and surface quality in the automotive industry.
Stable and Reliable
• High-Quality Components:Featuring high-quality T-slot templates and linear guides,it ensures the stability and precision of machine operation,reducing vibration and wear,and extending the service life of the equipment.
• T-Slot Template:Facilitates quick mold installation and adjustment,improving production efficiency and reducing machine downtime.
• Linear Guides:Provide precise motion control,ensuring smooth and accurate mold opening and closing,further enhancing product quality.
Efficient Design
• Quick Mold Change:The T-slot template design supports rapid mold change,significantly reducing machine downtime and improving production efficiency.
• Precise Motion Control:Linear guides ensure smooth and precise mold opening and closing,further enhancing production efficiency and product quality.
The Automotive Parts Dedicated Injection Molding Machine,with its high speed,energy-saving features,high precision,and stable performance,is an ideal choice in the automotive component production field.It meets the strict requirements of the automotive industry for product quality and production efficiency,helping enterprises reduce production costs and enhance market competitiveness.

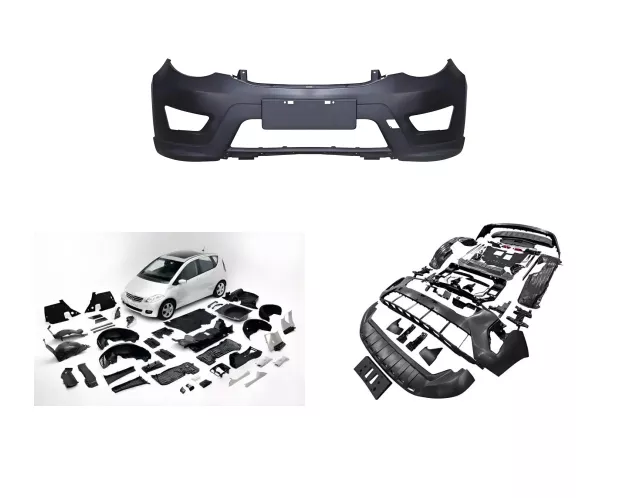

Application Cases
